Supported Platforms

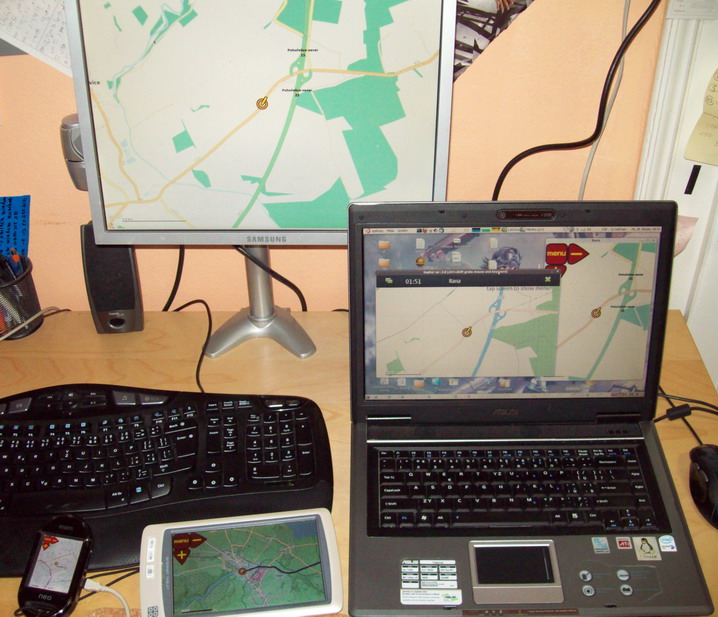

http://www.modrana.org/images/modrana_n_series.jpg multiple devices with modRana running

This section describes platforms currently supported by modRana. Other platforms have simply not been tested yet :)

Following software packages are needed for running modRana with the GTK GUI:

  • Python 2.5+
  • PyGTK
  • Cairo
  • Simplejson (optional)
  • espaek (optional)

To run the Qt GUI you will need:

Nokia N900 + Maemo

http://www.modrana.org/images/modrana_n900.jpg http://www.modrana.org/images/modrana_n900_menu.jpg

the left window shows modRana running in the scratchbox Maemo 5 simulator

TODO: add a photo of N900 running modRana

ModRana is available for Maemo from the Extras-devel repository - just start the application manager, go to the "location and navigation" and select "modRana" for installation. :)

Platform compatibility:

  • modRana is installed to /opt/modrana
  • the map tiles are stored in /home/user/MyDocs/.maps
    • modRana shares the map tiles with other navigation apps on Maemo
    • when using SQLite tile storage, tiles are not shared as no other applications (currently) support SQLite tile storage
    • SQLite tile storage is much more efficient than file storage due to the properties of the FAT32 filesystem in MyDocs (64 KB clusters -> each file has at least 64 KB).
  • desktop icon is included
  • GPS support is tested and working
  • fullscreen & portrait mode support
  • automatic GUI rotation using the accelerometer (can be turned off in Options)
  • screen dimming control (has several modes, can be configured in Options)
  • volume keys are used for map zooming
  • modRana uses native Maemo5 notifications and has a Maemo5 application-menu(a menu activated by clicking on the window title)

Sailfish OS

http://modrana.org/images/sailfish/modrana_sailfish_map_pastel_landscape.png http://modrana.org/images/sailfish/modrana_sailfish_map_mapnik.png http://modrana.org/images/sailfish/modrana_sailfish_main_menu.png http://modrana.org/images/sailfish/modrana_sailfish_cover.png

ModRana runs fine on Sailfish OS and is already available from the OpenRepos application repository.

Harmattan @ Nokia N9 and N950

http://www.modrana.org/images/modrana_n950.jpg http://www.modrana.org/images/modrana_n950_menu.jpg

ModRana with the QML GUI runs just fine on Harmattan. The QML is quite basic at the moment though.

modRana Harmattan package repository

NeoFreeRunner @ SHR

The default SHR installation already has all the essential dependencies needed by modRana. To get spoken turn-by-turn directions, install espeak.

HP Touchpad

Under chroot on WebOS

It is possible to run modRana (with both GTK and QML UI) in chroot under WebOS.
http://www.modrana.org/images/modrana_hp_touchpad_webos_chroot.jpg
As the Touchpad has no GPS, GPS access was not tried.
Touchpad chroot - image gallery
Touchpad chroot - Youtube video playlist

Smart Q7/V5

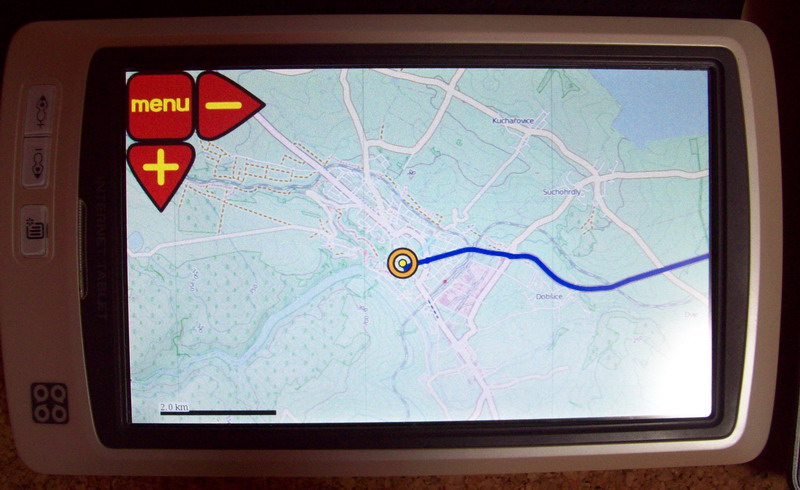

modrana on the SmartQ 7

ModRana works on this Chinese 7 inch Mobile Internet Device, which is running a modified Ubuntu 9.10. Users report that modRana also works on the SmartQ V5 tablet.

Use the Debian/Ubuntu modRana package for Q7.

  • by default, tiles are stored in ~/.modrana/maps
  • CAUTION:because the on device space on the Q7 is limited, it is advised to:
    • change the tile storage path in user_config.conf (in the modRana root directory), or
    • install modRana after initializing the on-card image file

Ubuntu / Debian

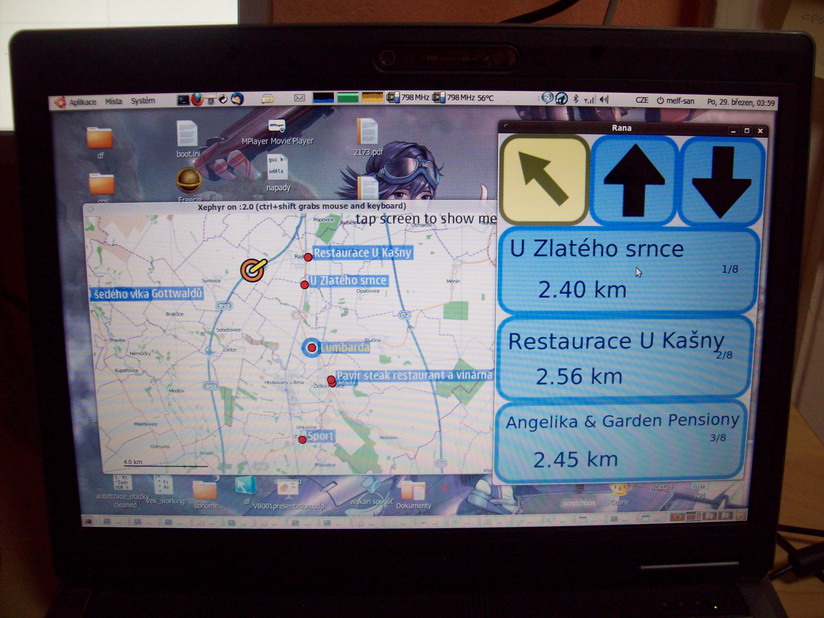

modRana on Ubuntu: N900 emulation to the left, native in window to the right

Packages for Ubuntu/Debian are availble in the download section. ARM and x86 versions of Ubuntu have been tested.

QtMoko

Users report, that modRana wors on the QtMoko distribution for Neo FreeRunner. It is reportedly also faster than on SHR.
